Panasonic CD Player SL-CT500 Exposed Circuit Board

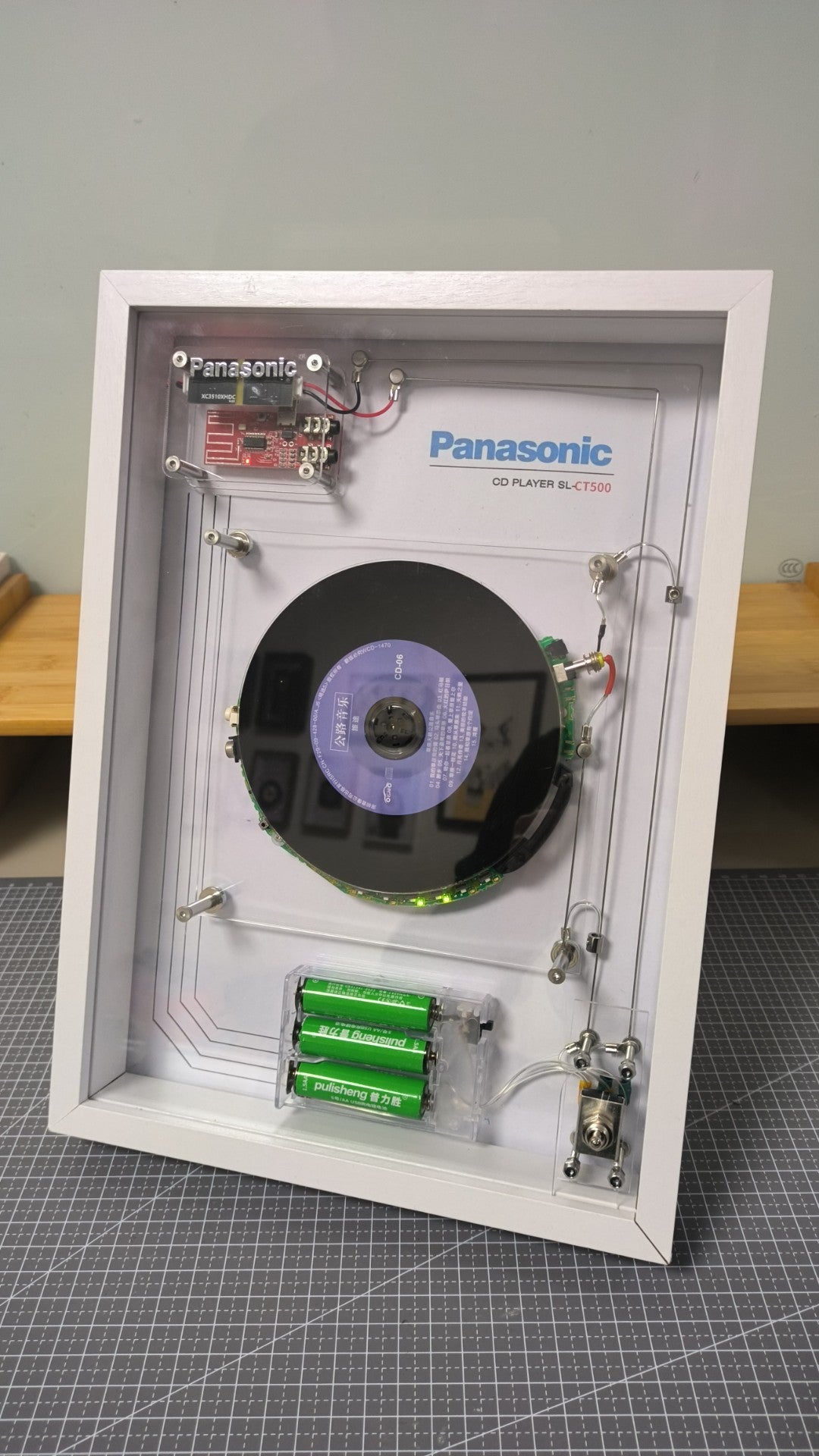

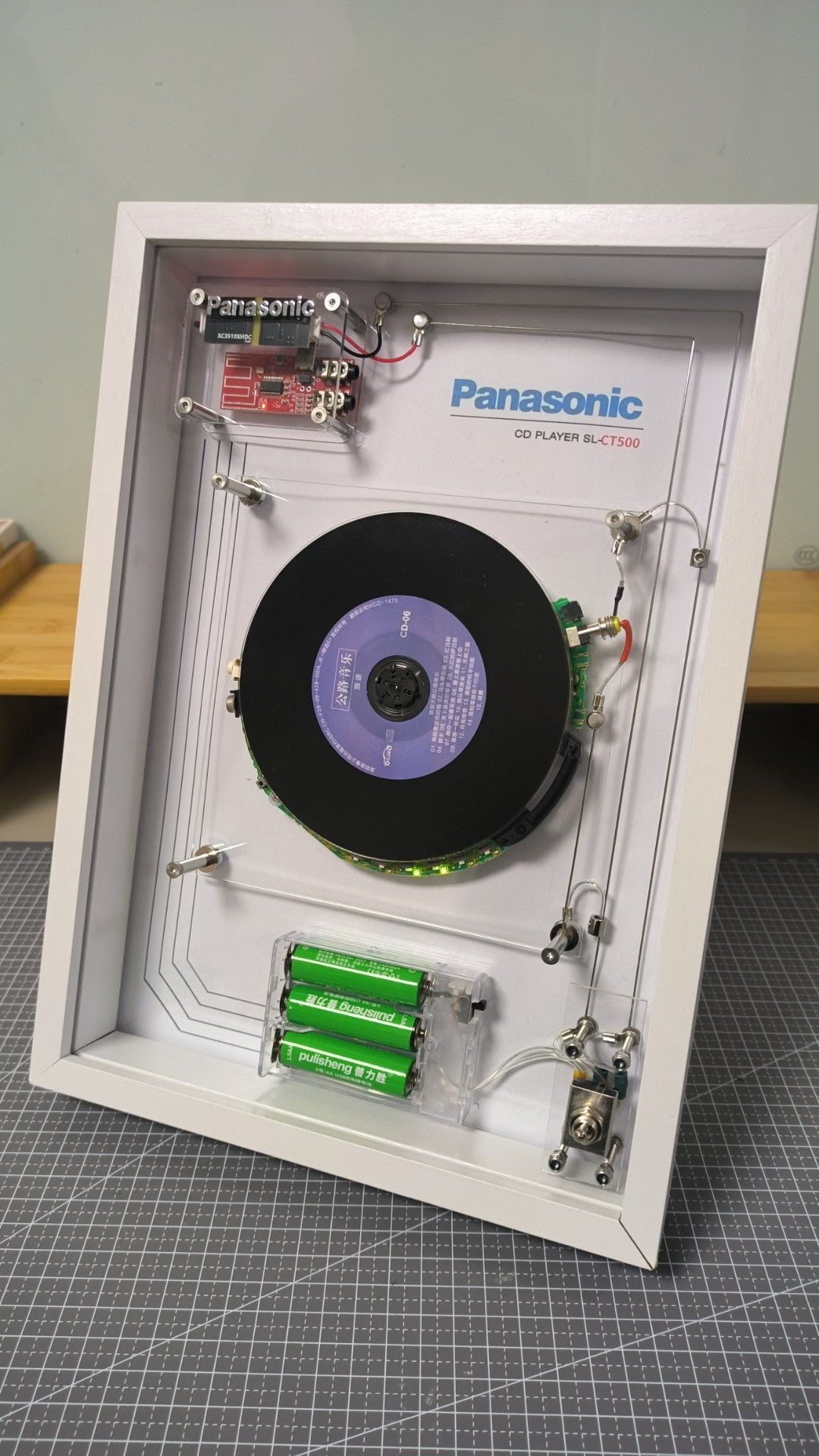

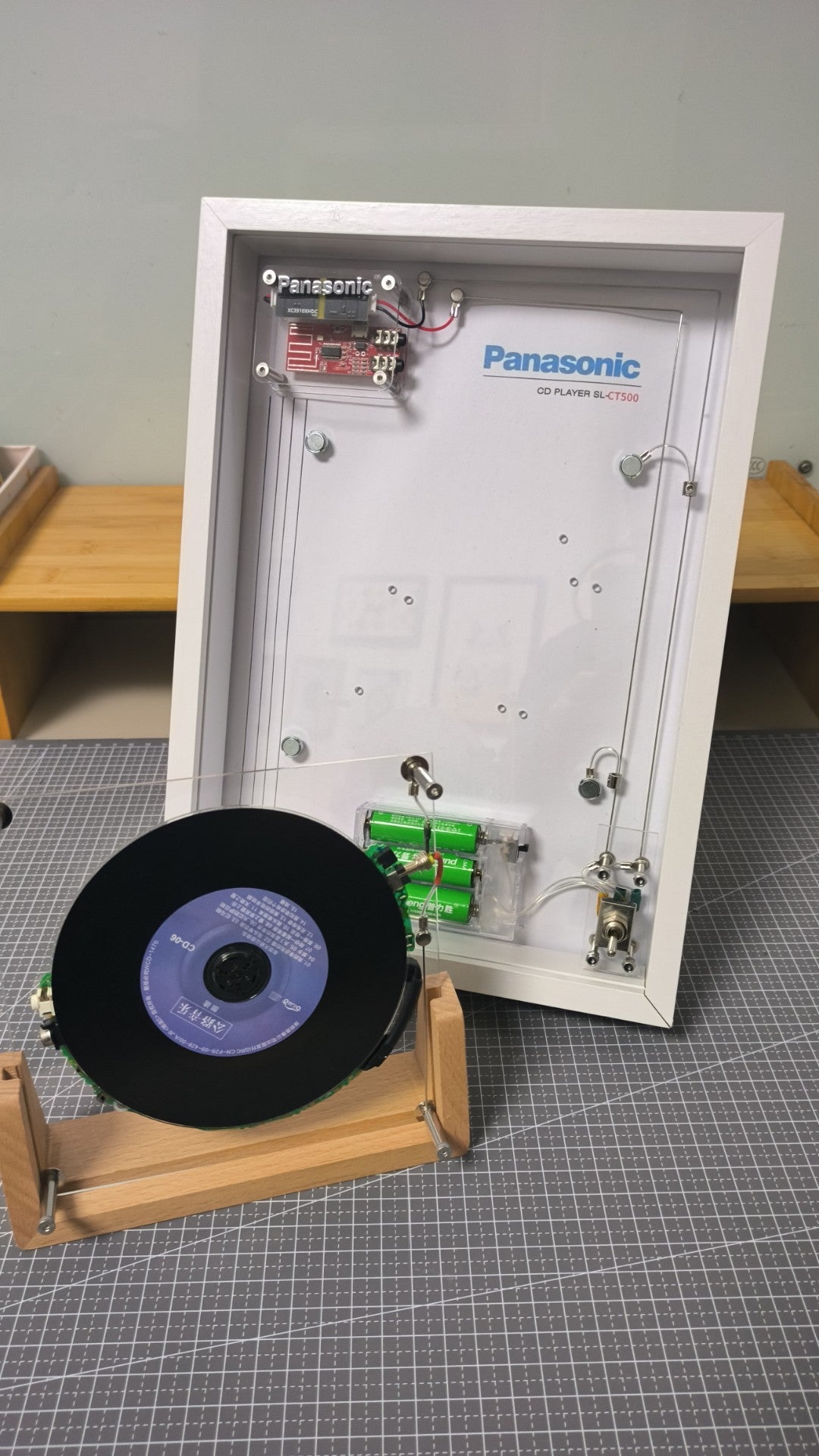

The product is a Panasonic CD Player SL-CT500, presented as an exposed electronic assembly housed within a white rectangular frame. The device features a central circular optical disc mechanism with a black surface and a purple label marked "CD-96" and Chinese characters indicating music content. This disc is mounted on a green circuit board that forms the base of the player’s internal structure. Above the disc, a red printed circuit board (PCB) is visible, connected via thin wires to other components, including a small black module labeled "Panasonic XC3510XHDC." Below the disc, a transparent plastic battery holder contains three green cylindrical batteries branded "pulisheng," each marked with specifications such as "3600mAh" and "1.5V AA." To the right side of the unit, additional wiring connects to metallic connectors and switches, suggesting user-accessible control points.

The overall design emphasizes transparency and modularity, allowing full visibility of its functional parts. The white frame encasing the electronics has clean edges and appears to be made of painted wood or composite material, providing structural support while maintaining a minimalist aesthetic. Inside the frame, various screws, standoffs, and mounting brackets secure the components in place, ensuring stability during operation. Thin metal rods extend from the sides toward the center, possibly serving as guides for mechanical movement related to the disc tray or laser assembly. A small LCD screen embedded near the bottom displays numerical data, likely representing playback status or settings.

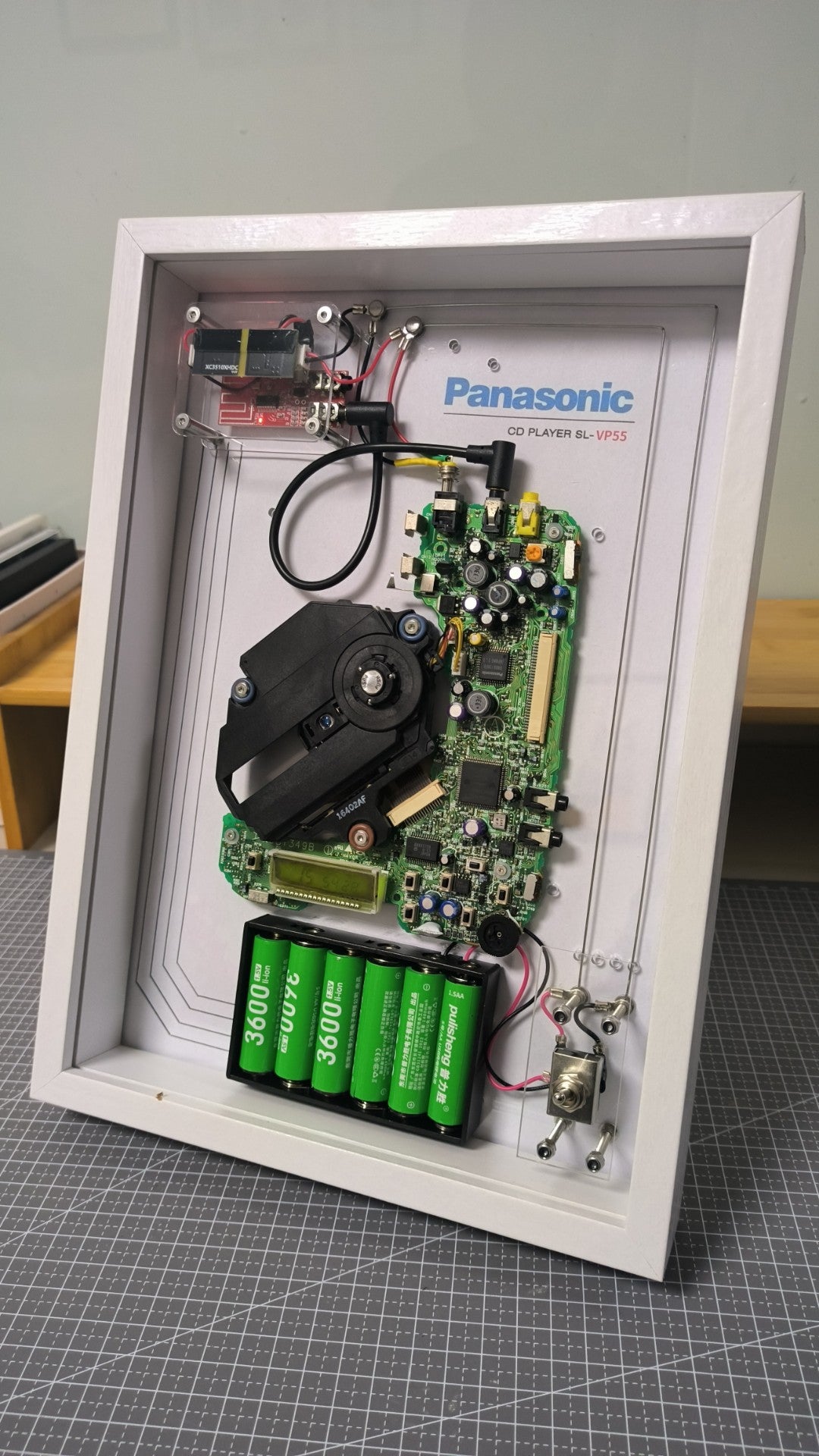

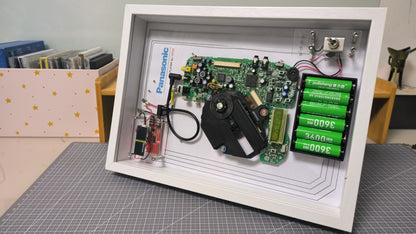

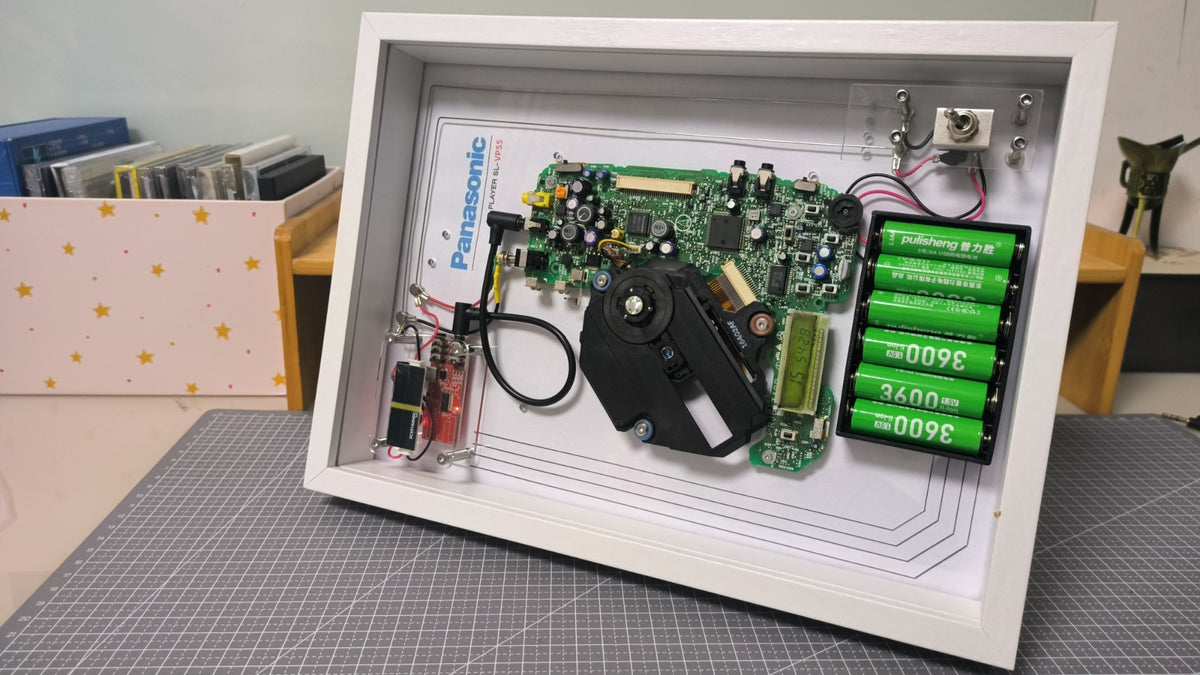

In another configuration shown, the same Panasonic branding ("SL-VP55") accompanies a more complex arrangement featuring six green "pulisheng" batteries arranged horizontally in a larger black casing. Here, the main PCB dominates the interior space, populated with numerous integrated circuits, capacitors, resistors, and connectors. A prominent black motorized component sits adjacent to the board, presumably driving the disc rotation mechanism. Wires snake across the layout, linking different modules together, while silver toggle switches offer manual input options. The background includes subtle decorative elements like star patterns on nearby storage boxes, though these remain unrelated to the core functionality of the device itself.

Both configurations share common traits: they utilize standard-sized AA batteries for power supply, rely heavily on custom-built electronics rather than off-the-shelf solutions, and prioritize educational demonstration over commercial polish. Their construction suggests suitability for hobbyists, educators, or enthusiasts interested in understanding how compact disc players operate internally. Despite their rudimentary appearance compared to mass-market products, these units exhibit careful attention to detail in terms of component placement and connectivity, reflecting thoughtful engineering aimed at clarity and accessibility.
